V2491 Cyg spectra by WVS observers (updated 22-Apr-2008)

Observer Dominiek Hoste
Date April 15 2008
Equipment 8" SCT Meade LX10 f/10, EQ6, Canon D350, Star analyser
Image ISO 800, 30 seconds exposure, stack of 10 frames
Resolution 7.5 Angstrom/pixel


H-alfa FWHM 120 Angstrom = 5400 km/s
H-alfa equivalent width 700 Angstrom

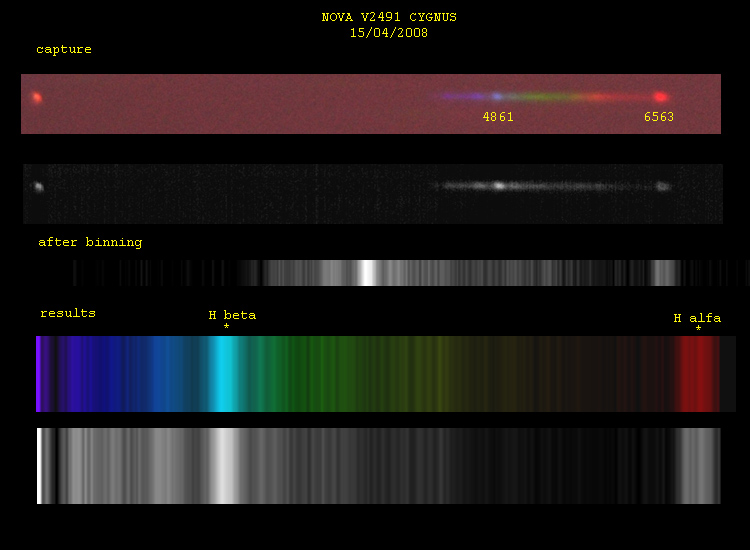

Color image of the spectrum (click to enlarge)

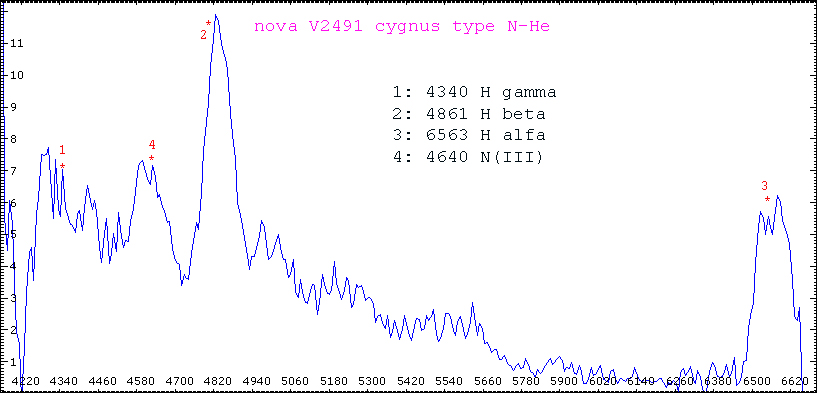

Raw spectrum (click to enlarge)

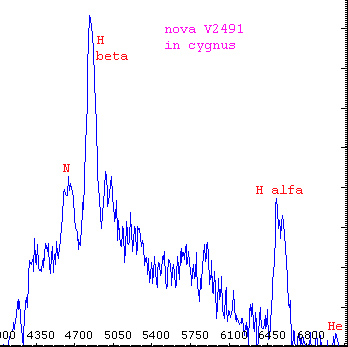

Normalised flux (click to enlarge)

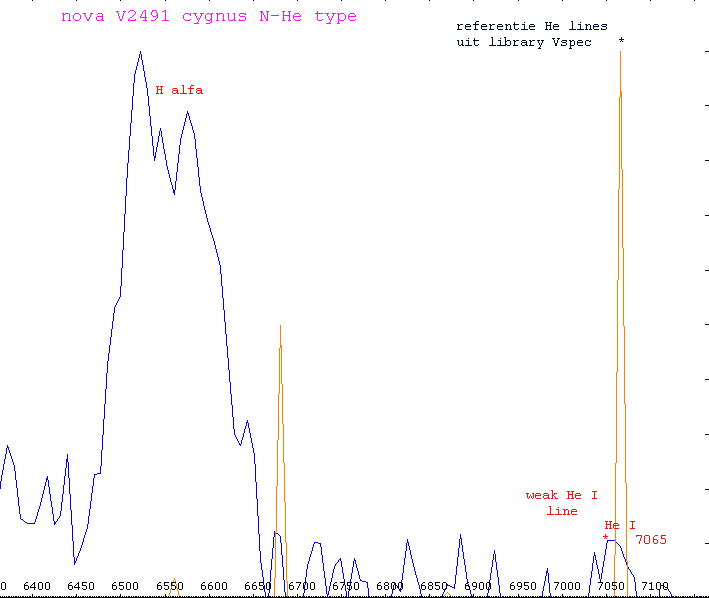

Detail of IR region (click to enlarge)
